Description

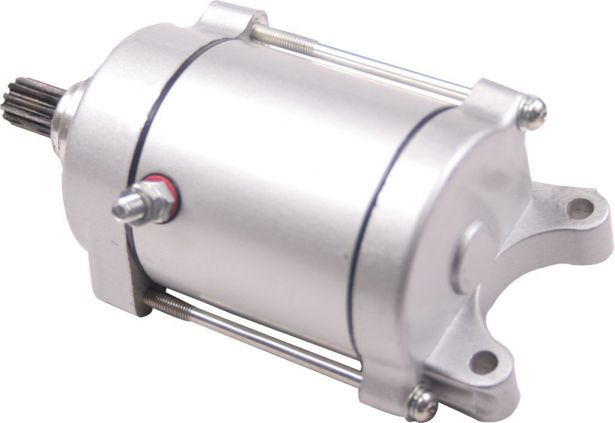

- Starter 200cc, 250cc engine. Works on almost all 200cc-250cc Chinese engines 11 Teeth. Body of starter is 10cm long with a diameter of 6.5cm. Bolt mount holes have a spacing of 5.3cm center to center. Spline has a diameter of 1.3cm. Clockwise rotation with 11 splines.
- Number of Mount Holes: 2
- Mount Hole Spacing (centre to centre): 5.3cm
- Body Length: 10cm
- Body Diameter: 6.5cm
- Number of Splines: 11
- Spline Diameter: 1.4cm
- Rotation: Clockwise
Specifications
| Product Specifications | ||
|---|---|---|
| Body Diameter | 6.5 cm | |
| Body Length | 10 cm | |
| Mount Hole Spacing (centre to centre) | 5.3 cm | |
| Number of Mount Holes | 2 | |
| Number of Splines | 11 | |
| Rotation | Clockwise | |
| Spline Diameter | 1.3 cm | |
