Rim and Tire Set - Front 21" Chrome Rim (1.60x21) with 80/100-21 Tire, Disc Brake

Rim and Tire Set - Front 21
  • Rim and Tire Set - Front 21
  • Rim and Tire Set - Front 21
  • Rim and Tire Set - Front 21
  • Rim and Tire Set - Front 21
Product Number:
40D4160CR
Availability:
Out of Stock
Price:
$209.99 CAD


  Description

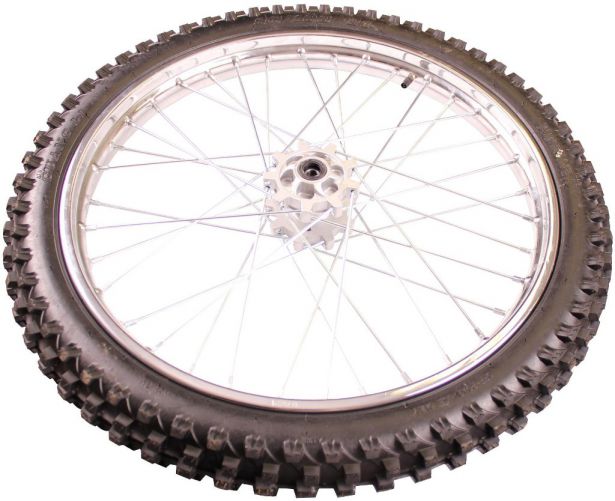

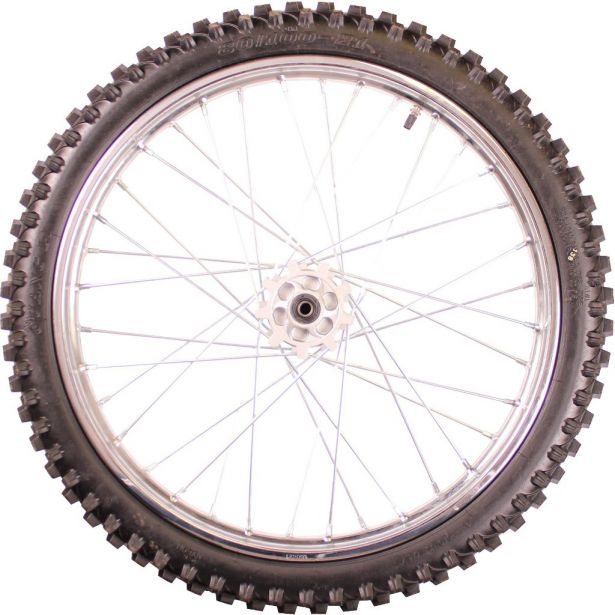

This kit contains a 21 inch front chrome rim (1.60-21) and 21 inch aggressive ('knobby') front tire (80/100-21). Primarily (though not exclusively) used for 150cc, 200cc, 250cc, 300cc, 400cc and 500cc dirt bikes / pit bikes. This rim uses a brake disc/rotor. Corresponds to matching brake disks 90A2065 and 90A2070.
  • Placement: Front
  • Braking System: Disc/Rotor
  • Rim Size: 1.60-21
  • Tire Size: 80/100-21 (2.50-21)
  • Axle Mount Hole: 12mm
  • Bolt Mount Across (center to center): 47mm
  • Bolt Mount Diagonal (center to center): 65mm
    Associated Parts:
  • 40D1160 Tire - 80/100-21 (2.50-21), 21 Inch, Dirt Bike
  • 90A2065 Brake Rotor - 4 Bolt 190mm 50mm Brake Disc, 50cc to 300cc
  • 90A2070 Brake Rotor - 4 Bolt 190mm 50mm Brake Disc, 50cc to 300cc
