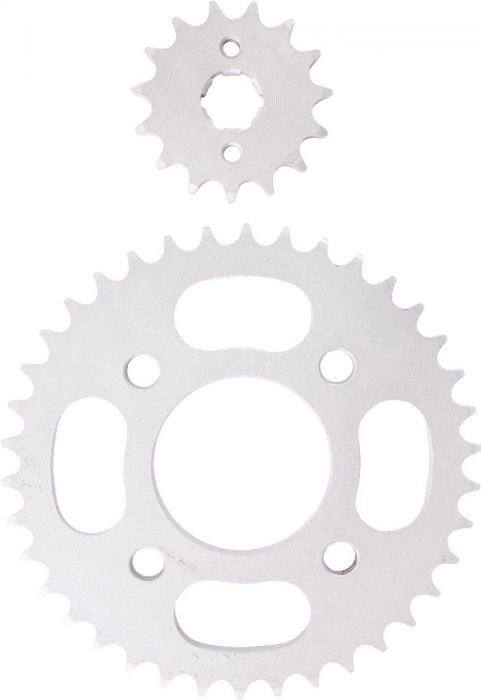

Sprocket Set - Rear 428-38T, Front 428-15T

Sprocket Set - Rear 428-38T, Front 428-15T
  • Sprocket Set - Rear 428-38T, Front 428-15T
  • Sprocket Set - Rear 428-38T, Front 428-15T
Product Number:
20A1850
Availability:
In Stock
Price:
$39.99 CAD


  Description

Sprocket Set - Rear 428-38T, Front 428-15T. WY125
    Rear Sprocket:
  • Outside Diameter: 159mm
  • Centre Hole Diameter: 57.9mm
  • Mounting Hole (centre-centre): 63mm
  • Mounting Hole (centre-centre diagonal): 90mm
  • Bolt Hole: 10.5mm
  • Thickness: 7mm
    Front Sprocket:
  • Outside Diameter: 65mm
  • Centre Hole Diameter: 20mm
  • Thickness: 7mm
    Associated Parts:
  • 20A1920 Lock sprocket
  • 20A1915 Lock Sprocket Bolt
