Product Number:
WCH3000-CBL
Availability:
In Stock
Price:
$127.99 USD


  Description

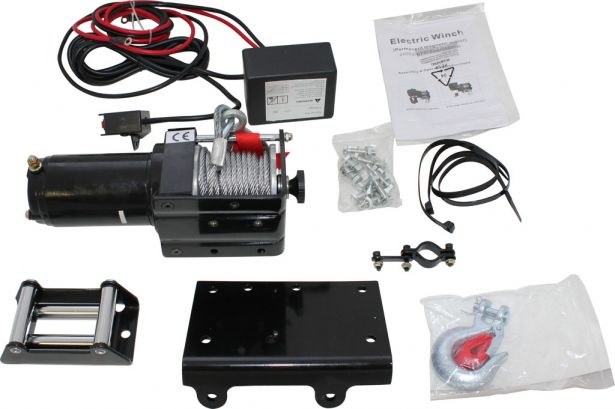

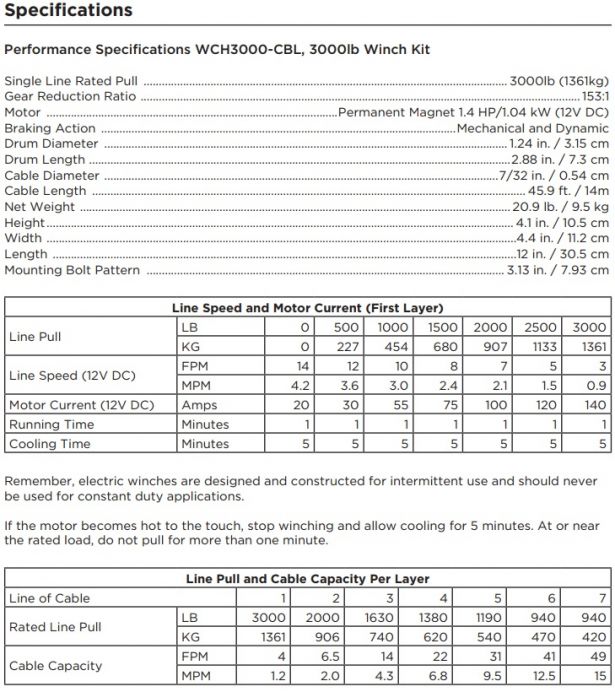

Performance Specifications WCH3000-CBL, 3000lb Winch Kit
  • Remote type: Hand-held cable-attached remote with handlebar mount.
  • Single Line Rated Pull: 3000lbs (1361kg)
  • Gear Reduction Ratio: 153:1
  • Motor: Permanent Magnet 1.4 HP/1.04 kW (12V DC)
  • Braking Action: Mechanical and Dynamic
  • Drum Diameter: 1.24 in. / 3.15 cm
  • Drum Length: 2.88 in. / 7.3 cm
  • Cable Diameter: 7/32 in. / 0.54 cm
  • Cable Length: 45.9 ft. / 14 m
  • Net Weight: 20.9 lb. / 9.5 kg
  • Height: 4.1 in. / 10.5 cm
  • Width: 4.4 in. / 11.2 cm
  • Length: 12 in. / 30.5 cm
  • Mounting Bolt Pattern: 3.13in. / 7.93 cm

Line Speed and Motor Current (First Layer)
Line Pull LB 0 500 1000 1500 2000 2500 3000
KG 0 227 454 680 907 1133 1361
Line Speed (12V DC) FPM 14 12 10 8 7 5 3
MPM 4.2 3.6 3.0 2.4 2.1 1.5 0.9
Motor Current (12V DC) Amps 20 30 55 75 100 120 140
Running Time Minutes 1 1 1 1 1 1 1
Cooling Time Minutes 5 5 5 5 5 5 5

Remember, electric winches are desgned and constructed for intermittent use and should never be used for constant duty applications.

If the motor becomes hot to the touch, stop winching and allow cooling for 5 minutes. At or near the rated load, do not pull for more than one minute.

Line Pull and Cable Capacity Per Layer
Line of Cable 1 2 3 4 5 6 7
Rated Line Pull LB 3000 2000 1630 1380 1190 1050 940
KG 1361 906 740 620 540 470 420
Cable Capacity FPM 4 6.5 14 22 31 41 49
MPM 1.2 2.0 4.3 6.8 9.5 12.5 15
Associated Parts:
  • WCH9100 - Winch Wireless Remote and Controller Set (2pc set)


Winch - MNPS 3000 lb 12 Volt (1000W / 1.4HP) Cabled Switch
Winch - MNPS 3000 lb 12 Volt (1000W / 1.4HP) Cabled Switch
Winch - MNPS 3000 lb 12 Volt (1000W / 1.4HP) Cabled Switch
Winch - MNPS 3000 lb 12 Volt (1000W / 1.4HP) Cabled Switch
Product Specifications
Braking Action Mechanical and Dynamic
Cable Diameter 0.54 cm
Cable Length 1400 cm
Drum Diameter 3.15 cm
Drum Length 7.3 cm
Gear Reduction Ratio 153:1
Motor 1040 W
Mounting Bolt Pattern 7.93 cm
Single Line Rated Pull 1361 kg
Height 10.5 cm
Length 30.5 cm
Width 11.2 cm
Weight 9.5 kg
