Description

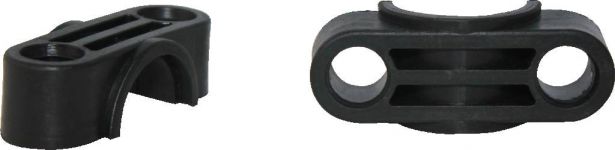

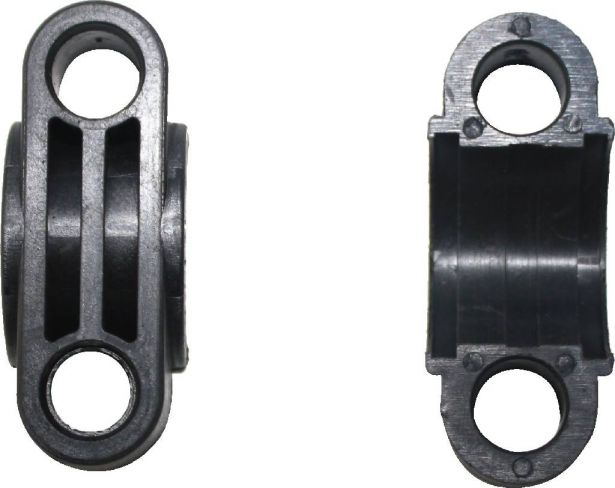

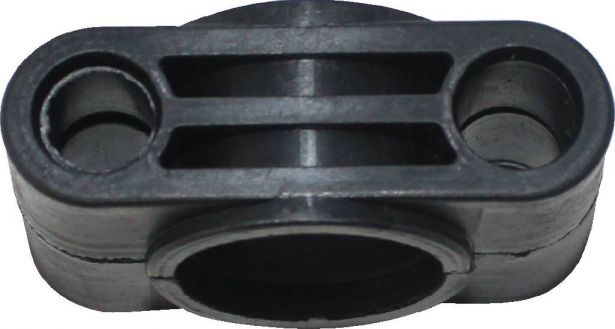

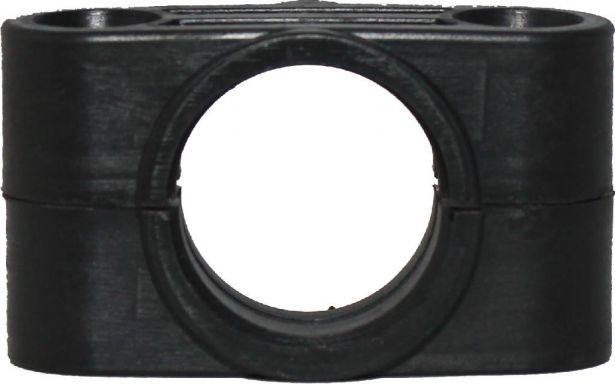

- This steering column clamp (aka steering stem clamp or bushings) has an inner diameter of 33mm and is most commonly used for (but not limited to) 50cc, 70cc, 90cc, 110cc and 125cc kids ATV's for such brands as Tao Tao, Zstar, Ulike, Roketa and dozens of others.
Approximate dimensions:
- Total Length: 75.5mm
- Total Width: 43.1mm
- Thickness: 29.5mm
- Handlebar Hole: 33.7mm
- Mounting Holes: 14.5mm
- Mounting Hole Spacing: 50mm (centre to centre)
Specifications
| Product Specifications | ||
|---|---|---|
| Handlebar Hole | 33.7 mm | |
| Mounting Hole Spacing | 50mm (centre to centre) | |
| Mounting Holes | 14.5 | |
| Thickness | 29.5 mm | |
| Total Length | 7.55 cm | |
| Total Width | 43.1 mm | |
