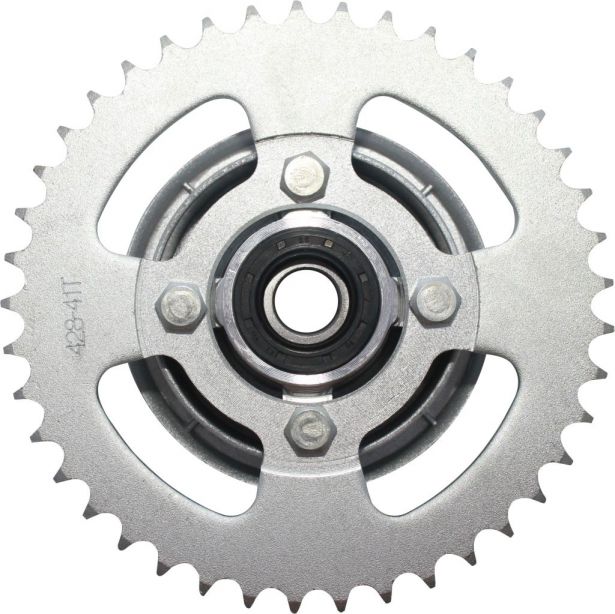

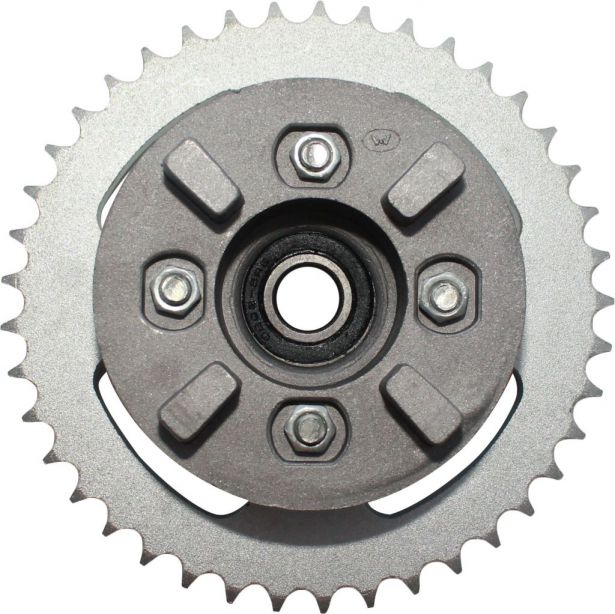

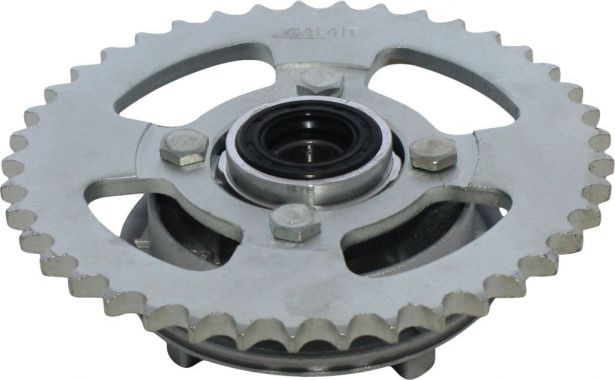

Sprocket - Rear, 428 Chain, 41 Tooth
Description
- This 41 tooth rear sprocket is made from hardened, corrosion resistant steel. Rear drive assembly included. Commonly (though not exclusively) used for 50cc to 500cc dirt bikes, ATVs, go karts and buggies. Approximate dimensions:
- Outside Diameter: 170mm
- Centre Hole Diameter: 53.9mm
- Mounting Hole (centre-centre): 50mm
- Mounting Hole (centre-centre diagonal): 70mm
- Bolt Hole: 8.3mm
- Thickness: 6.5mm & 5.5mm
Specifications
| Product Specifications | ||
|---|---|---|
| Bolt Hole | 8.3 mm | |
| Centre Hole Diameter | 53.9 mm | |
| Mounting Hole (centre-centre diagonal) | 70 mm | |
| Mounting Hole (centre-centre) | 50 mm | |
| Outside Diameter | 170 mm | |
| Thickness | 6.5mm & 5.5mm mm | |
