Description

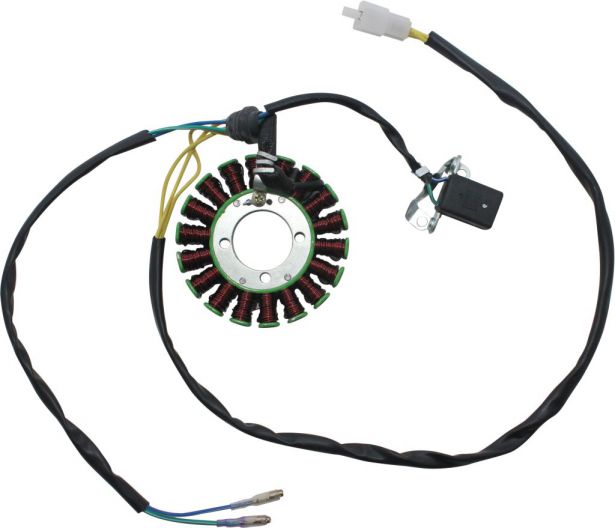

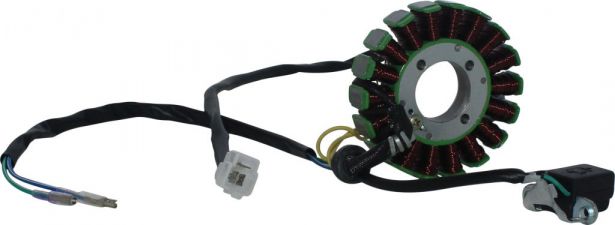

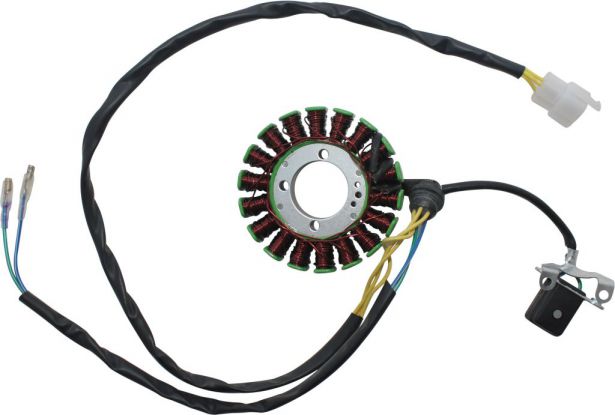

- Stator / Magneto Coil - CG18, CG125-18. This coil works on (but not limited to) the 300cc ATV's. Approximate dimensions:
- Outside Diameter: 93mm
- Centre Hole Diameter: 32mm
- Mounting Hole (centre-centre): 40mm, 28mm
- Bolt Hole: 5.4mm
- Harness Length: 70cm
- Pickup Wire Length: 11cm
- Pickup Hole (centre-centre): 35mm
