Product Number:
30A1350
Availability:
In Stock
Price:
$209.99 CAD


  Description

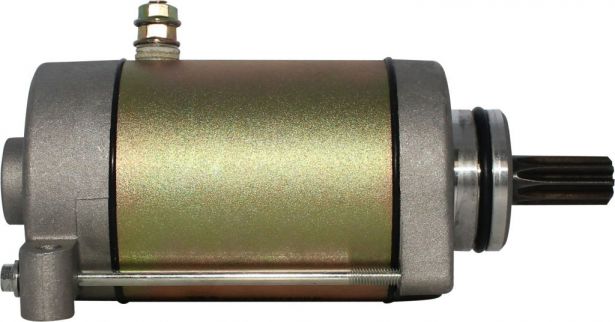

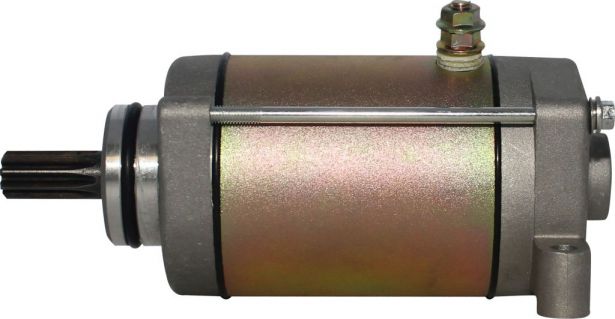

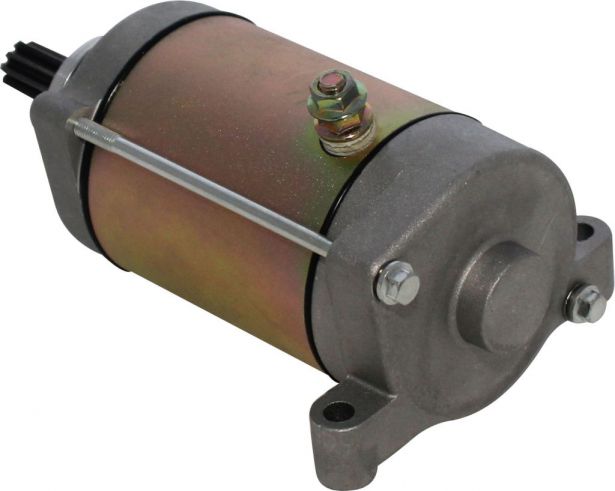

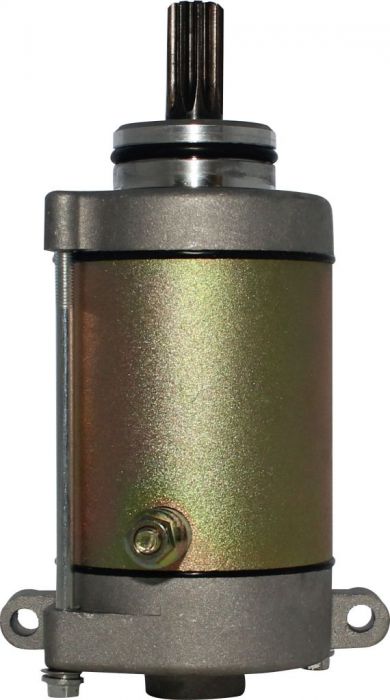

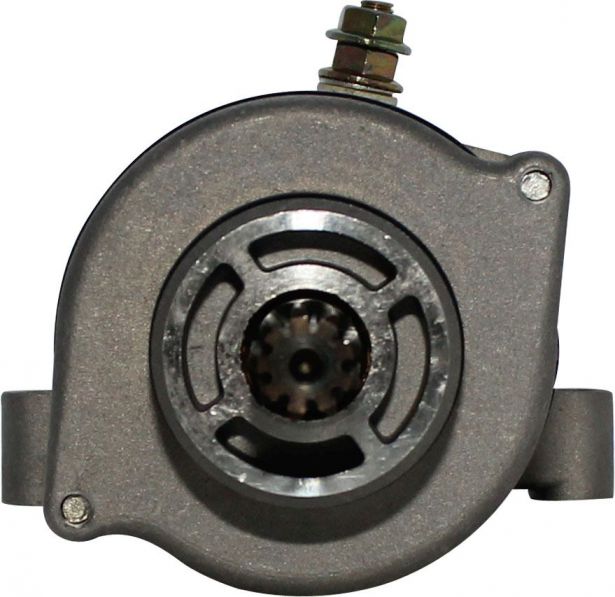

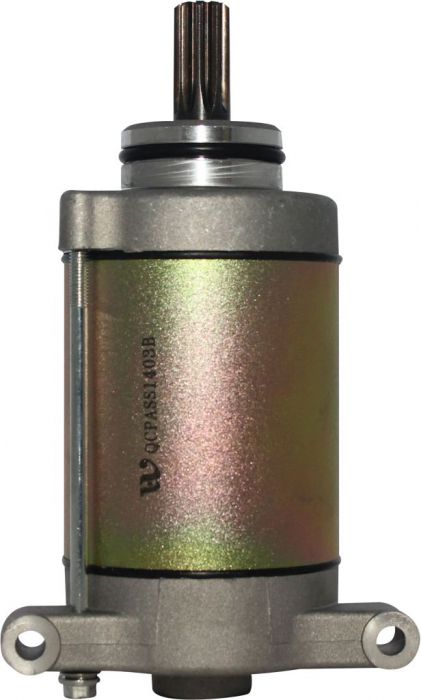

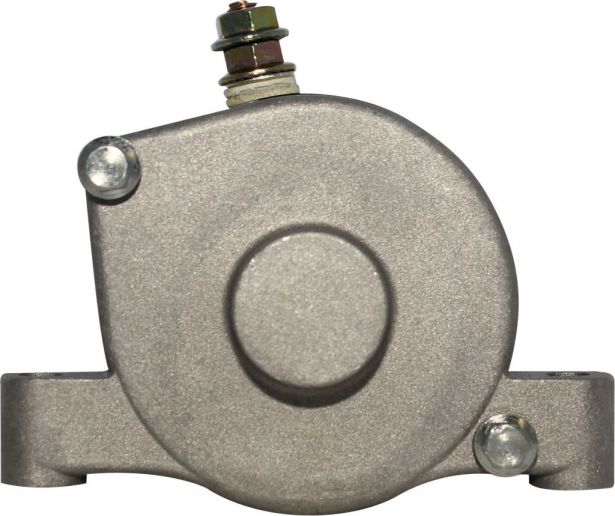

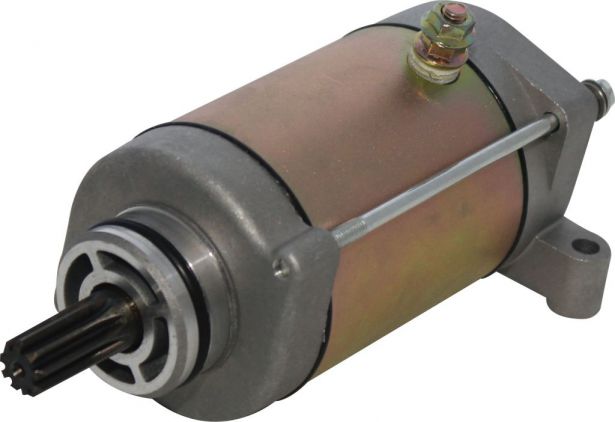

This genuine CF Moto Starter Motor is typically found in the Starting Motor / Electric Starting section of several part manuals. Commonly used for but not limited to CF188 / 500cc engines. It is most popularly known for its use in CF Moto 500cc / Rancher CF500 / CF500 CF188 / CF500 CF188-A / CF500 CF188-B / CF500 CForce X5 / CF500-2 CForce X5 / CF500-2A CForce X5 / CF500-3 UForce U500 U5 / CF500-5 Rancher / CF500-A CForce X5 / CForce 500 ONE / CForce 520 / Terrain 500 / X5 Terralander 500 492cc, Chironex Spartan 500, Diamo Adventure 500cc, Explorer Atlas 500 / Atlas 500 2x4 COMPACT / Atlas 500 4X4 XL / Atlas 500 4x4 EDITION / Everest 500 4X4 XL / Grison 625 4X4 Deluxe / Grumbler 500, Hammerhead Titan 500 UTV (Off-road), Journeyman Gladiator RX510 / Gladiator RX530 / Gladiator UTV 530 / Gladiator X5 / X5-A Valex, Linhai 500D / M550 EFI / M550L Europe EFI, Powermax Chase 500, Quadzilla RS6 SWB / RS6 Terrain / Terrain 500, XY Xingyang & XY Powersports 500cc / XY500UE, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimensions:

  • Voltage: 12V
  • Power: 550W
  • Insert Diameter: 40mm (1.57”)
  • Spline Diameter: 14mm (0.55”)
  • Bolt Hole Outer Spacing: 91.7mm (3.61")
  • Bolt Hole Inner Spacing: 78mm (3.07")
  • Total Length: 170mm (6.69")
  • Number of Teeth or Splines: 9

Manufacturer Part Numbers:

  • CF Moto Part Numbers: 0188-091100-0010, CF188-091100 “STARTING MOTOR”
  • Arrowhead Powersports Part Number: SCH0015 “STARTING MOTOR”
  • Hammerhead Part Number: CF188-091100 “STARTING MOTOR”
  • Explorer Part Number: CF188-091100 “STARTING MOTOR”
  • Powermax Part Number: CF188-091100 “STARTING MOTOR”
  • Diamo Part Number: 08-038-4811 “STARTING MOTOR”
  • Journeyman Part Number: 0180-091100-0010 “STARTING MOTOR”
  • Quadzilla Part Number: 0180-091100-0010 “STARTING MOTOR”
  • Lester Part Number: 19584
  • PIC Part Number: 199-084
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Starter - 9 Splines, CF Moto, Xingyang, Chironex, CF188, 500cc
Product Specifications
Manufacturer PN 0180-091100-0010
Manufacturer PN (alternate) CF188-091100
Number of Splines 9
