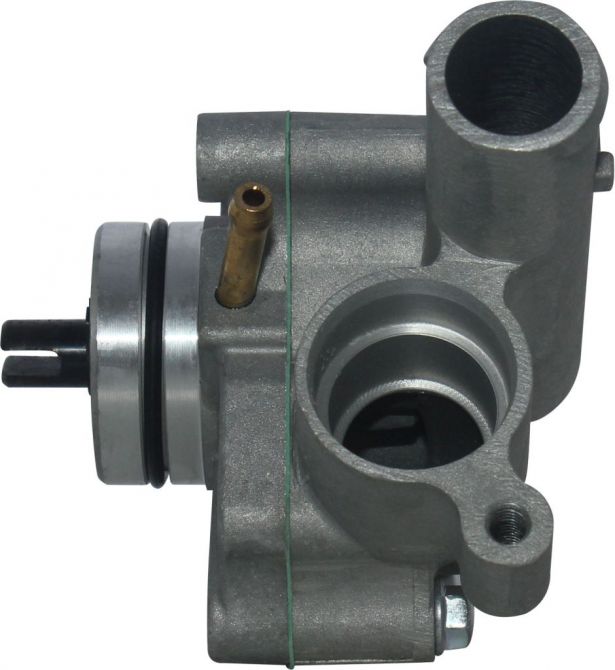

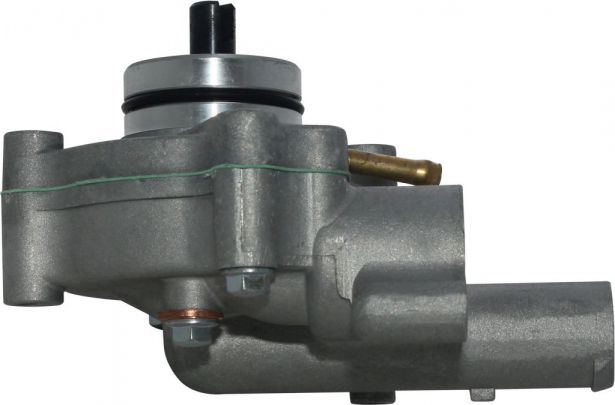

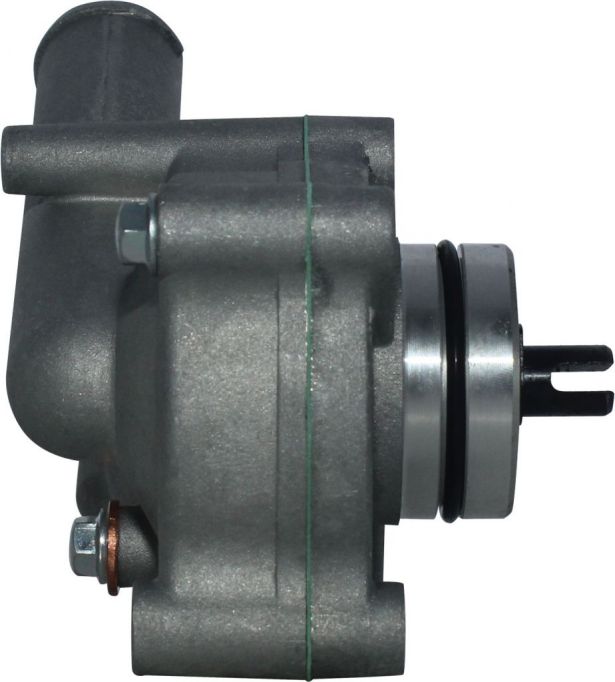

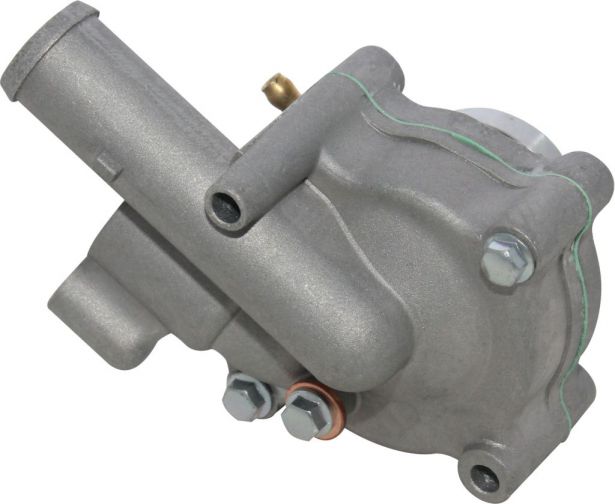

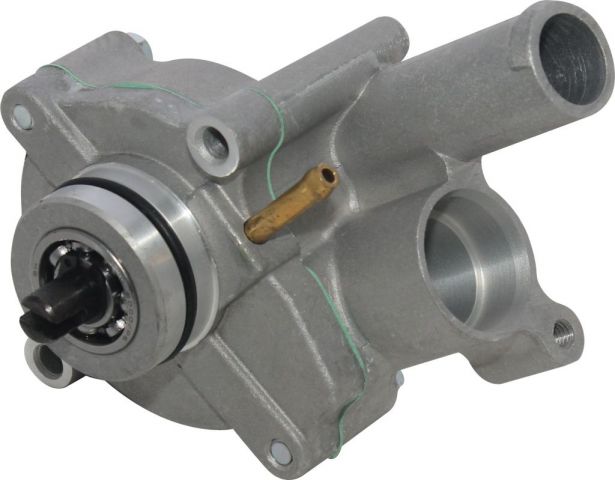

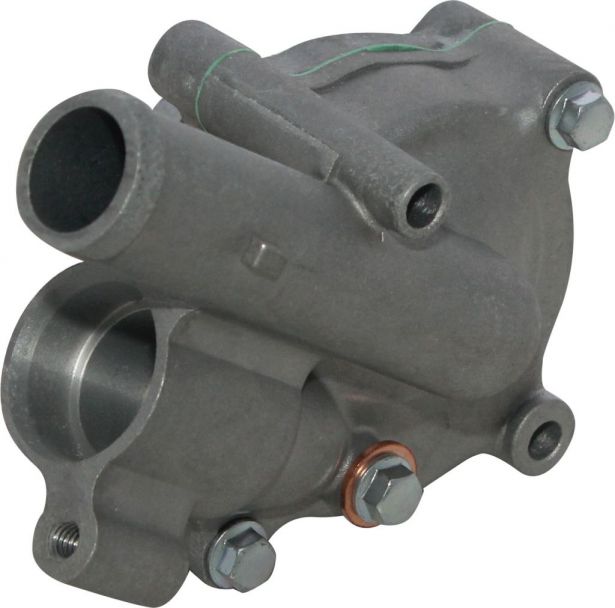

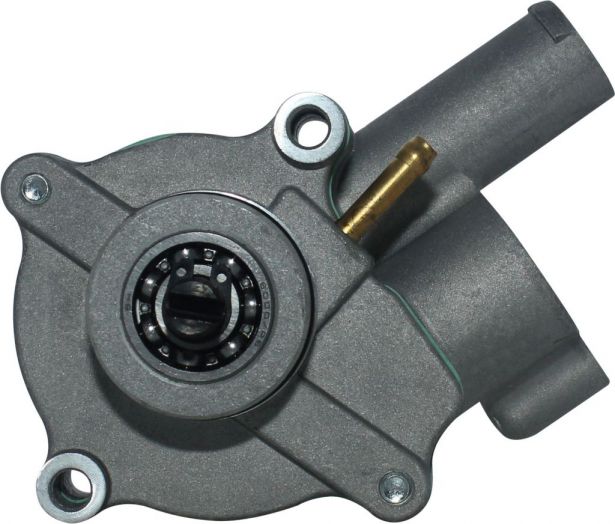

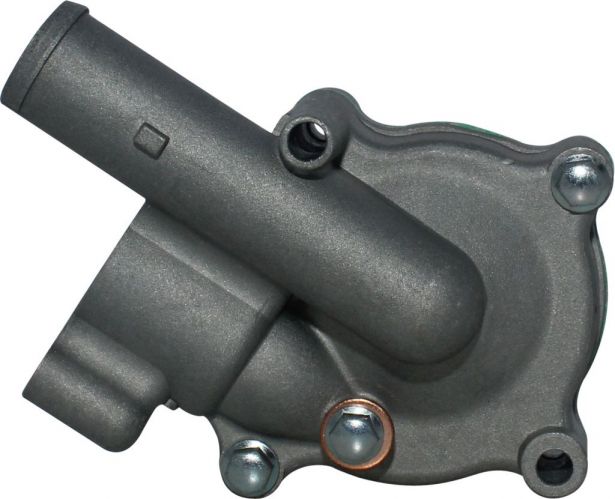

Water Pump - CF Moto, Hammerhead, Chironex, 500cc, 600cc, 625cc

This genuine CF Moto Water Pump is typically found in the Water Pump Assy section of several part manuals. Commonly used for but not limited to 4-stroked water cooled CF188 / 196S / 500cc, 600cc, and 625cc engines. It is most popularly known for its use in CF Moto 500cc CF500 UTV (Rancher) / CF500 ATV / CF500 AllRoad 500 / CF500 Atlas /CF500 CF188 / CF500 CF188-A / CF500 CF188-B / CF500 CForce X5 / CF500 XL ONE / CF500-2 CForce X5 / CF500-2A CForce X5 / CF500-3 UForce U500 U5 / CF500-5 Rancher / CF500-5A / CF500-5B X500 / CF500-A CForce X5 / CF500-D CForce 500 / CF600 196S-B(X6) / CF600 196S-C / CF600-5 Rancher 600 UForce U6 / CF600-3 ZForce Z6 SSV / CF600-6 ZForce Z6-EX SSV / CF625-2 / CF625-2A / CF625-3 ZForce Z6 SSV Side-by-Side / CF625-6 ZForce Z6-EX SSV / CF625-B X600 / CF625-C 196S-B(X6) / CF625-C Terralander 625 X6 / CF625L / CF625L Long EFI / CF625S Short EFI / Terracross 625 4X4 / X6 EFI / Z6 EFi / Terralander 500 CForce 500 / Rancher 500 UForce 500 / Terralander 625 CForce 600 / CF500-2A Long / CF500-A Short / X5 Basic & Classic, ATV Sweden CForce X7, GOES 520 /520 MAX / 625UTS / G520 Quad / G525 / G525 MAX / G625i / G625i MAX / G625i UTX, Hammerhead Titan 500 UTV (Off-Road), Journeyman Gladiator RX510 / Gladiator UTV 530 / Gladiator UTV630 EFI / Gladiator X5 / X5 EFI / Gladiator X6 / X6 EFI / Gladiator Z6, Powermax Chase 500, Quadzilla Terrain 500, Chironex Komodo 500 / Spartan 500 / Spartan 600 EFI, Diamo Adventure 500 ATV, Explorer Atlas 500 / Atlas 500 2x4 COMPACT / Atlas 500 4X4 XL /Atlas 500 4x4 EDITION / Everest 500 4X4 XL / Grison 625 4X4 Deluxe / Grumbler 500, WT Motors Ricambi Alaska WT500 / Ram WT500, XY Powersports, Yamaha, and Viarelli 550 UTV, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Includes Part Numbers:

• 1P52MI-011018, 0020-011018-0030 Bolt M6X70
• 152MI-013010, 0010-013010-0030 Bolt M6X50
• 152MI-060012, 0010-060012-0030 Bolt M6X30
• 152MI-021019, 0010-021019-0030 Bolt M6X12
• 152MI-060009, 0010-060009 Washer 6
• CF188-081100, 0180-081002-0080 Cover, Water Pump
• CF188-081001, 0180-081001 Impeller
• CF188-081006, 0180-081006 Gasket
• 152MI-081000, 0010-081000 Water Seal
• CF188-081004, 0180-081004-0050 Water Pump Shaft
• CF188-081002, 0180-081100 Housing, Water Pump
• 172MM-080005, 0110-080005 Oil Seal 10X20X5
• GB/T276/6000, 30400-01000 Bearing 6000
• GB/T894.1/10, 30801-01005 Retainer 10

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0180-081000, CF188-081000 “WATER PUMP”
• GOES Part Number: 0180-081000 “WATER PUMP”
• Chironex Part Number: CF188-081000 “WATER PUMP”
• Diamo Part Number: 08-038-470A “WATER PUMP”
• Hammerhead Part Number: CF188-081000 “WATER PUMP”
• Explorer Part Number: CF188-081000 “WATER PUMP”
• Powermax Part Number: CF188-081000 “WATER PUMP”
• Quadzilla Part Number: 0180-081000 “WATER PUMP SUB ASSEMBLY”
• ATV Sweden Part Number: CF500M-16-A “WATER PUMP”
• WT Motors Part Number: QN50011280 “WATER PUMP”
• Journeyman Part Number: 0180-081000 “WATER PUMP”
