Product Number:
MFL5140BK
Availability:
In Stock
Price:
$51.99 USD


  Description

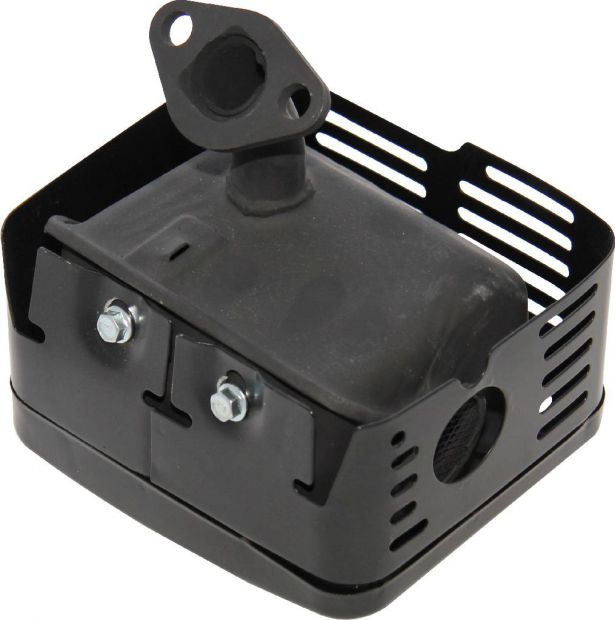

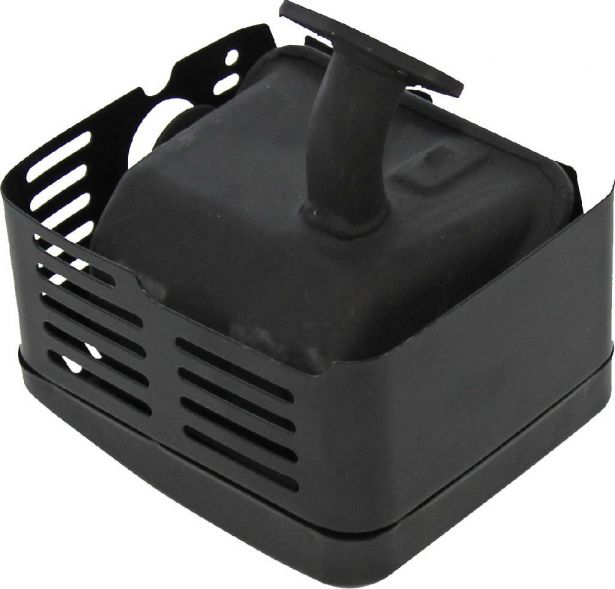

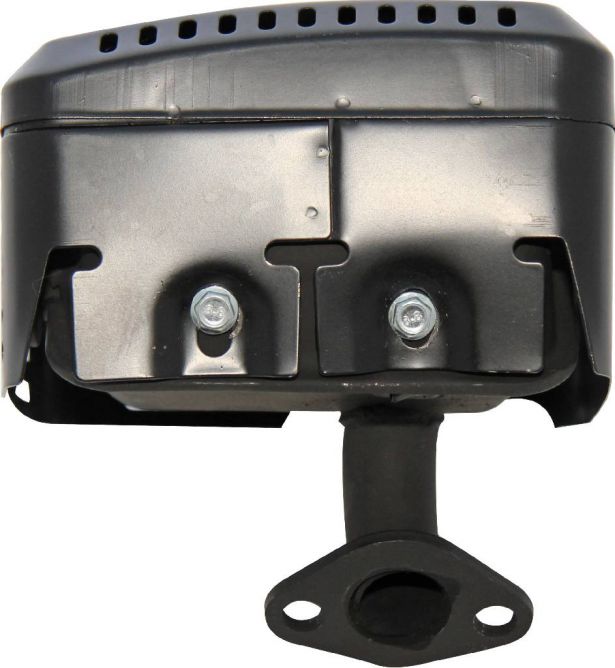

This muffler with heat shield is typically found in the Muffler(1) section of several part manuals. Commonly used for but not limited to 5.5HP to 6.5HP, 120cc, 160cc, and 200cc engines with VIN numbers GCAE-1900001-8999999, GCAE-1000001-1899999, GCAE-1900001, GDAB-1010001-9999999, GCACT-1000001-9999999, GCAJK-1000001, GCAHT-1000001, GCACT-1000001, GDAB-1000001-1009999, GCAJK-1000001-9999999. It is most popularly known for its use in:

Honda GX120

Honda GX160

Honda GX200:

(Type HX) / (Type HX/A) / (Type HX2) / (Type HX2/A) / (Type HXQ) / (Type LD) / (Type LX2) / (Type LX2/A) / (Type NX) / (Type NX/A) / (Type PX) / (Type PX/A) / (Type PX2) / (Type QAB2) / (Type QD) / (Type QD/A) / (Type QTP2) / (Type QTP2/A) / (Type QX2) / (Type QX2/A) / (Type QXB2) / (Type QXB2/A) / (Type QXC9) / (Type QXC9/A) / (Type QXE2) / (Type QXE2/A) / (Type QXF) / (Type QXF2) / (Type QXQ) / (Type QXS2) / (Type RH2) / (Type RH2/A) / (Type RHA2) / (Type RHA2/A) / (Type RMG2) / (Type RMG2/A) / (Type RX) / (Type RX2) / (Type RX2/A) / (Type SD) / (Type SD/A) / (Type SM12) / (Type SM12/A) / (Type SM22) / (Type SM22/A) / (Type TX) / (Type TX/A) / (Type TX2) / (Type TX2/A) / (Type UX) / (Type VX) / (Type VX/A) / (Type VX2) / (Type VX2/A) / (Type VXP) / (Type VXP/A),

Honda GX200T:

(Type LX2) / (Type QAPW) / (Type QX2) / (Type SM12) / (Type TX2) / (Type VGS5) / (Type VX2),

Honda GX200U:

(Type HX2) / (Type HX26) / (Type HXU) / (Type LHQ4) / (Type LX2) / (Type LX4) / (Type NDJ) / (Type PXU) / (Type QG2) / (Type QH26) / (Type QH4) / (Type QX4) / (Type QX7) / (Type QXB2) / (Type QXC9) / (Type QXE2) / (Type QXE4) / (Type QXE5) / (Type QXE8) / (Type QXH4) / (Type QXS2) / (Type RH2) / (Type RH26) / (Type RHA2) / (Type RHQ4) / (Type RMG2) / (Type RX2) / (Type RX4) / (Type RXU) / (Type SHQ4) / (Type SM12) / (Type SM14) / (Type SM22) / (Type SM24) / (Type SMC4) / (Type SWG4) / (Type SX4) / (Type SX7) / (Type SXE4) / (Type SXE5) / (Type SXU) / (Type TX2) / (Type TXU) / (Type TXU1) / (Type VEN2) / (Type VEN4) / (Type VENN) / (Type VGG2) / (Type VPM4) / (Type VS17) / (Type VSD) / (Type VSD1) / (Type VSD2) / (Type VSD7) / (Type VX2) / (Type VX4) / (Type VXU1),

Honda GX200UT:

(Type HX2) / (Type LX2) / (Type LX4) / (Type LXAU) / (Type PXU) / (Type QH26) / (Type QHQ4) / (Type QMP4) / (Type QX2) / (Type QX26) / (Type QX4) / (Type QX9) / (Type QXB2) / (Type QXC9) / (Type QXE2) / (Type QXE5) / (Type QXE6) / (Type QXU) / (Type RH2) / (Type SHQ2) / (Type SHQ4) / (Type SM12) / (Type SMC2) / (Type SMC4) / (Type SX4) / (Type SX9) / (Type SXE5) / (Type SXU) / (Type TX2) / (Type VPM8),

as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. This muffler works on our 10A9000 and 10A9005 engines. The Honda style 5.5HP (GX160) and 6.5HP (GX200) motor profile has thousands of applications in the global market. One of the most commonly used engine types worldwide.

Muffler with Shield Product Code: 4743100 / 4640850

Heat Shield / Protector Product Code: 4644811 / 9374331

Approximate Dimensions:

  • Length: 13.65cm (5.38”)
  • Height: 14.61cm (5.75”)
  • Width: 12.07cm (4.75”)

Heat Shield Interchangeable Part Numbers:

Honda Part Numbers: 18320-ZE1-000 / 18320-ZF1-H51 / 18310-ZE1-821 / 18320-ZF1-HO1 / 18320-ZF1-H51 / 18320-ZF1-H52 Heatshield for Muffler or Protector, Muffler (Silent)

KIC Part Number: 55-2002 Heatshield for Muffler

Oregon Part Number: 35-041 Muffler Shield

Manufacturer Part Numbers:

  • Honda Part Numbers: 18310-ZL0-000, 18310-ZL0-010 “MUFFLER COMP. SILENT GX200” or “MUFFLER, COMP.”
  • Stens Part Number: 105-709 “MUFFLER WITH SHIELD”
  • Napa Part Numbers: 7-07242, 7-07256 Muffler or Muffler Assembly
  • NHC Part Number: 255-4340
  • Prime Line Part Number: 7-07256 Muffler Assembly
  • EG/F1 Part Number: 55505597
  • Laser Part Number: 94396 Muffler with Heat Shield
  • KIC Part Number: 55-2006 Muffler with Heat Shield
  • BYNORM Part Number: 160-097 Muffler with Heat Shield
