  5. Rim - Rear 14" Chrome Rim 1.85x14 Disc Brake

Dirt Bike / Pit Bike Rims

12mm Axle Rims15mm Axle Rims

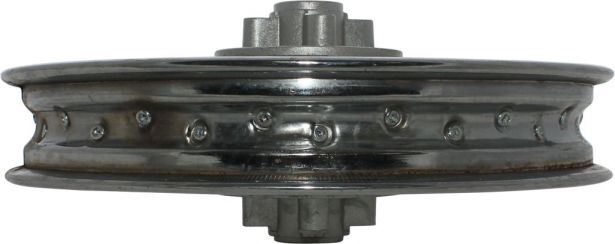

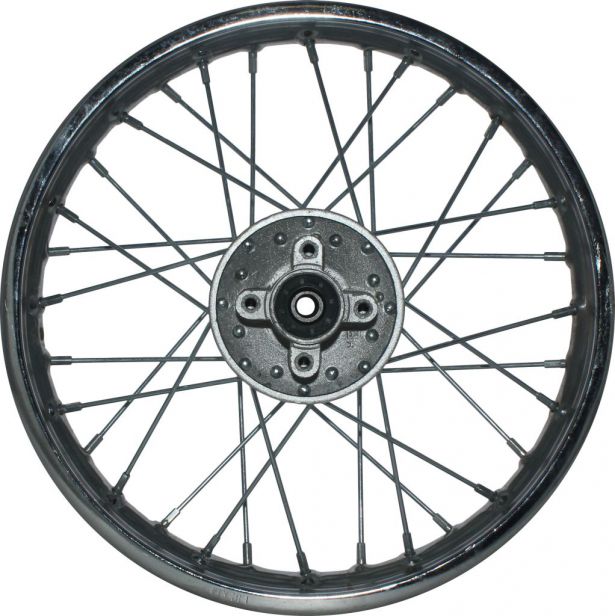

Rim - Rear 14" Chrome Rim 1.85x14 Disc Brake

Rim - Rear 14
  • Rim - Rear 14
  • Rim - Rear 14
  • Rim - Rear 14
Product Number:
40D4242CR
Availability:
Out of Stock
Price:
$99.99 CAD


  Description

Rear Steel Dirt Bike Rim. This 14" chrome rim is primarily used for 90cc to 140cc dirt bikes. This rim uses a brake disc/rotor. Fits with 14 inch tire 90/100-14 and inner tube 3.00-14. TaoTao part number is 103537.
  • Placement: Rear
  • Braking System: Disc/Rotor
  • Rim Size: 1.85x14
  • Axle Mount Hole: 12mm
  • Bolt Mount Across (center to center): 47mm
  • Bolt Mount Diagonal (center to center): 65mm on one side, 68mm on other side
    Associated Parts:
  • 40D1142 Tire - 90/100-14, 14 Inch
  • 40D2170 Tube - 90/100-14 (3.00-14)
Rim - Rear 14
Rim - Rear 14
Rim - Rear 14
