Brake Rotor - 4 Bolt 177mm 52mm Brake Disc, Rear, Liangzi, Odes, 400cc

Brake Rotor - 4 Bolt 177mm 52mm Brake Disc, Rear, Liangzi, Odes, 400cc
  • Brake Rotor - 4 Bolt 177mm 52mm Brake Disc, Rear, Liangzi, Odes, 400cc
  • Brake Rotor - 4 Bolt 177mm 52mm Brake Disc, Rear, Liangzi, Odes, 400cc
Product Number:
90A2075
Availability:
In Stock
Price:
$69.99 CAD


  Description

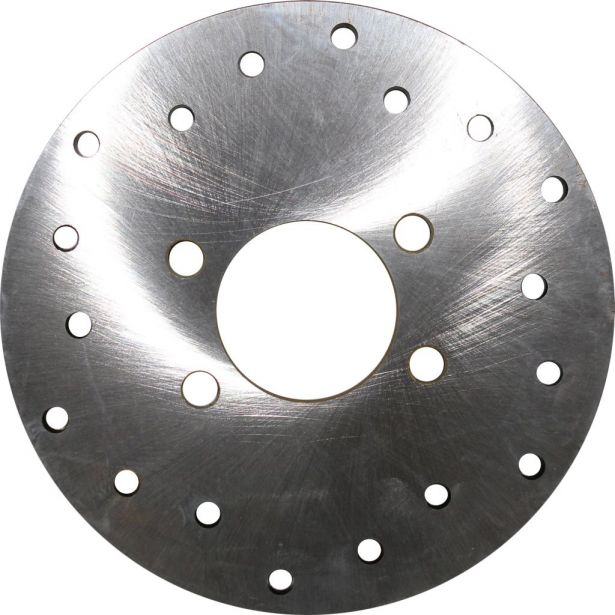

Disc brake rotor made from hardened, corrosion resistant steel. This brake disc rotor is most commonly (but not exclusively) used for 400cc ATVs and UTVs from companies like Odes and Liangzi. (*note, current stock is being substituted for a more durable variation, with same mounting profile but no exterior holes*)

Common Liangzi model names consist of variations of "Liangzi 400cc ATV", "Liangzi 400cc UTV", "Liangzi 400cc XUV", "Liangzi 400cc 4x4", "Liangzi LZ400", "Liangzi LZ400-4", Liangzi LZ400-C etc. Listed Liangzi rear brake disc rotor part number is 05-0601003 and listed on the factory parts list as "Rear brake disc".

Common Odes model names consist of variations of "Odes 400cc ATV", "Odes 400cc UTV", "Odes 400cc XUV", "Odes 400cc 4x4" etc. Common listed Odes rear brake disc rotor part number is 05-0601003 and listed on the factory parts list as "Rear brake disc".

Manufacturer Part Number:

  • 05-0601003

Approximate dimensions:

  • Outer Diameter: 177mm
  • Centre Hole: 52mm
  • Thickness: 4.5mm
  • Mounting Holes: 10mm
  • Mounting Hole Spacing: 65mm x 39mm (centre to centre)
Brake Rotor - 4 Bolt 177mm 52mm Brake Disc, Rear, Liangzi, Odes, 400cc
Brake Rotor - 4 Bolt 177mm 52mm Brake Disc, Rear, Liangzi, Odes, 400cc
Product Specifications
Centre Hole 52 mm
Mounting Hole Spacing 65mm x 39mm (centre to centre)
Mounting Holes 10
Outer Diameter 177 mm
Thickness 4.5 mm
