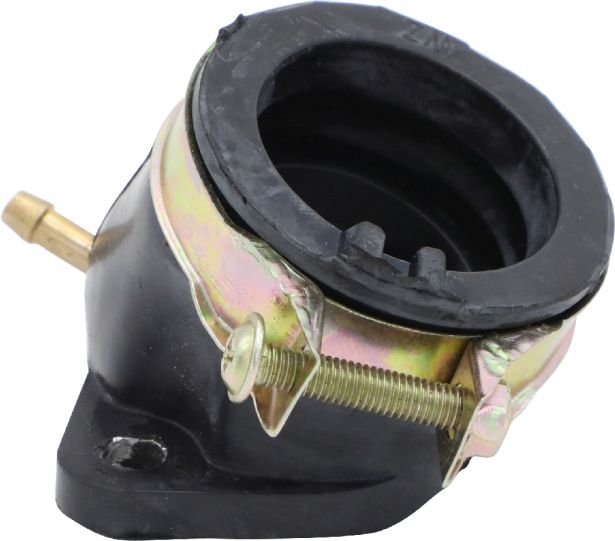

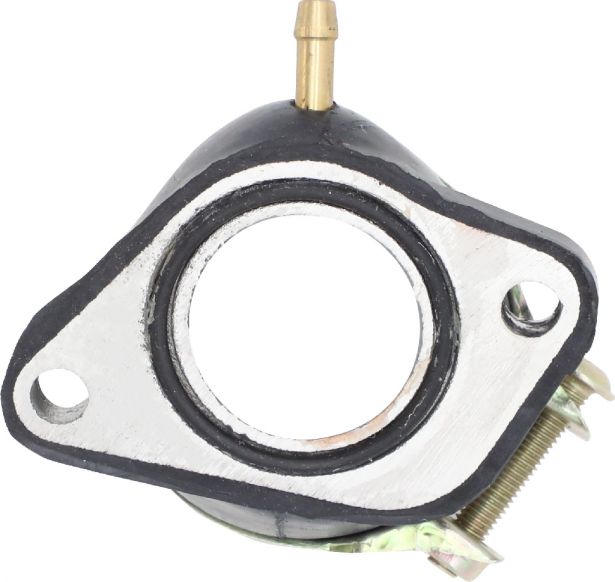

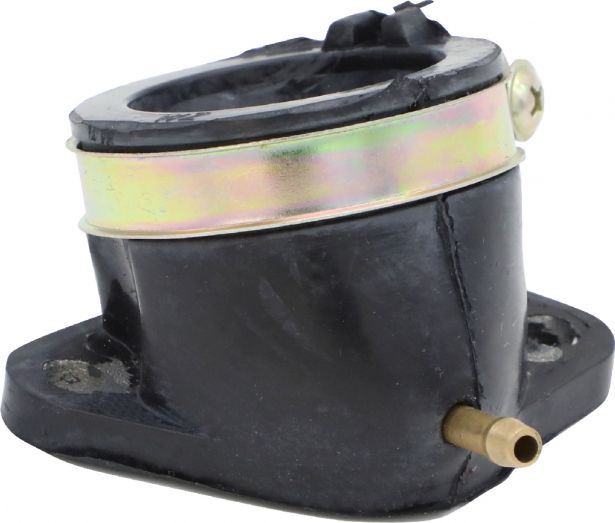

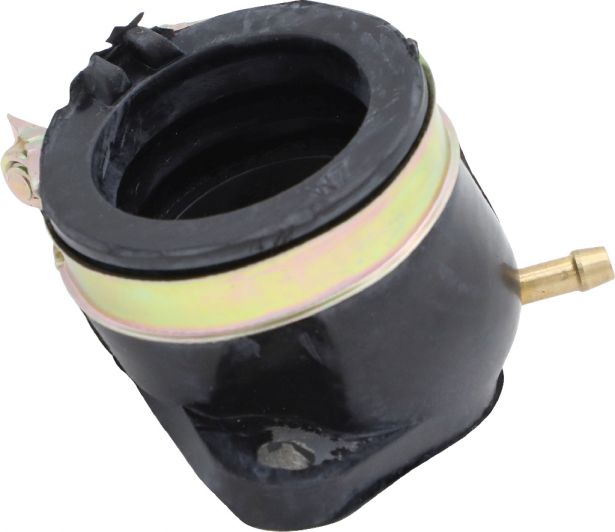

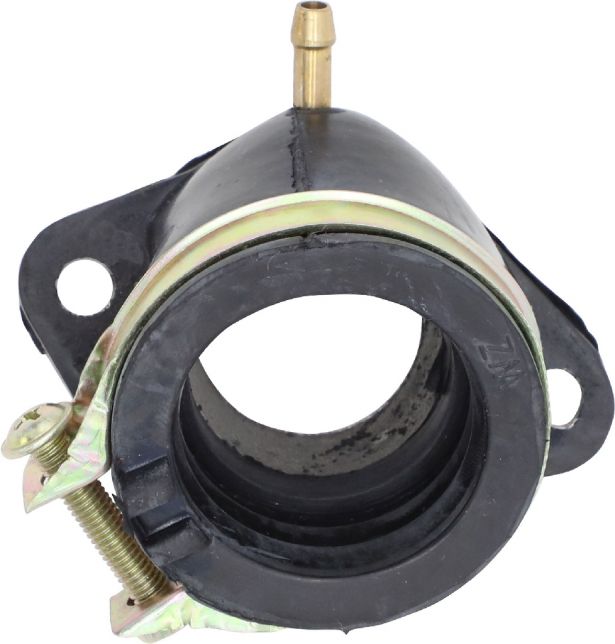

Intake - CF Moto, 34mm/27mm, 250cc, 172MM

This carburetor intake manifold is typically found in the Cylinder Head Assy / Cylinder Cover Assy (2) / Cylinder Head Comp. section of several part manuals. Commonly used for but not limited to water cooled 172MM / GY6-250 / 250cc engines. It is most popularly known for its use in Honda Helix / Fusion / Spazio CN250 Scooter / CN250A / CN250AC / CN250 AC - Elite 250 Scooter / CN250A Elite, CF Moto CF250T-5 / CF250 172MM / CF250 172MM-A / CF250 172MM-B / V3 / V5, QLink Legacy 250, Joyner Dirt Devil (SZ250DS) / Dirt Devil SZ250DL / Sand Viper JNSZ250DN / Viper SZ250DI / Spider 250cc, Hammerhead SS250 / Standard 250 / GTS 250 / GT 250 / Twister UM250IIR, Kinroad 250XT250 GK-7 / XT250GK-2, Roketa Bali 250 Scooter / GK-06 (KTX-250 WJF) / GK-13 (KTX-250W)(L5G) / GK-19 (KTB-250W)(L5C), Diamo Wolverine Wolverine XF250-2A-2AR, SunL SL250-2 / SLGK-250-2A / XF250-2A Buggy / XF2502AR Buggy, Jonway Master 250 / YY250 / YY250T, JM Star 250, Beyond 260, Yonghe 260, Blade XTX250, Gio Bikes GT250, Lance Powersports Duke Touring 250, NST 200, Tank Sports Touring DE (TK250T-2) 250 4T, as well as many other brands of ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimensions:

• Inner Diameter of the Carburetor Mounting Hole: 34mm (1.34”)
• Inner Diameter of the Inlet or Intake Hole: 27mm (1.06”)
• Distance between Mounting Holes (center to center): 56mm (2.20”)
• Maximum Length: 46mm (1.81”)
• Minimum Length: 29mm (1.14”)

Include Parts Numbers:

• 0110-022900, 172MM-022900 Carburetor Relay Seat
• 172MM-022009 O-Ring 31 x 2
• 172MM-022500 Inlet Tube Clamp

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0110-022900, 172MM-022900 “CARBURETOR JOINT” or “JOINT COMP., CARBURETOR”
• Baja Reaction 250cc Part Number: BR250-344 “INTAKE PIPE”
• Baja Dune 250cc Part Number: DN250-466 (UPC: 883099099557) “INTAKE PIPE”
• QLink Part Number: 172MM-022900 “CARBURETOR JOINT”
• Hammerhead Part Number: 172MM-022900 “CARBURETOR RELAY SEAT”
• Joyner Dirt Devil 250cc Part Number: 172MM-022900 “JOINT COMP, CARBURETOR”
• Joyner Sand Viper 250cc Part Number: 172MM-022900 “CARBURETOR SEAT UNIT”
• Joyner Spider 250cc Part Number: 172MM-022900 “CARBURETOR SEAT UNIT”
• Kinroad XT250GK Part Number: 1711A-SCC0-0000 “PIPE COMP IN COMP”
• Roketa GK-06 Part Number: GK-06-250-3-27-1 “INTAKE MANIFOLD”
• Roketa GK-13 Part Number: GK-13-250-03-24-16 “INTAKE MANIFOLD”
• Roketa GK-19 Part Number: GK-19-250-03-33-02 “INTAKE MANIFOLD”
• SUNL SLGK-250-2A Part Number: XF172MM-1001210 “INTAKE VALVE BASE COMP.”
• Generic OEM and Jonway Part Number: YYSLL2500318 “INTAKE PIPE”
• JM Star Part Number: YYSLL2500318 “INTAKE PIPE”

Replaces Part Number:

• Honda Part Number: 16210-KM1-010 “INSULATOR, CARBURETOR”
