Gasket Set - Head & Base Gasket Set, 2 pcs, Honda, CF Moto, Hammerhead, Baja, Chironex, 172MM, 250cc

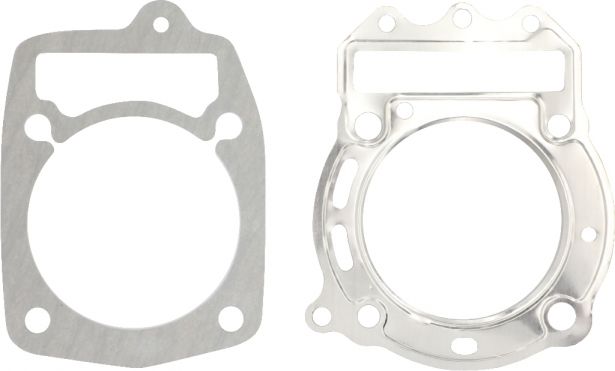

This gasket set consists of Head & Base or Upper & Lower or Top & Bottom cylinder gaskets that are used for the liquid cooled stock CN250 / CH250 / 172MM engines. The gaskets are typically found in CYLINDER HEAD ASSY / HEAD COMP, CYLINDER / CYLINDER COVER ASSY / CYLINDER COMP / CYLINDER / CYLINDER BODY ASSY sections in several part manuals. Commonly used for but not limited to 250cc engines. It is most popularly known for its use in Honda Helix / Spazio / Fusion CN250, CF Moto 172MM / 172MM-A / 172MM-B / 172MM-F / 172MM-C / V3 / V5 / CF250T-5A, Baja Reaction 250 / BR250 / Dune 250 / DN250, Hammerhead 250ss / GT250 / GTS250 / Twister UM250IIR, Tank Sports Touring DE (TK250T-2) 250, Lance Powersports Duke Touring 250, Roketa Bali 250, Joyner 250 / Sand Viper 250cc / Viper JNSZ250DN / Viper 250 (SZ250DI) / Dirt Devil 250 (SZ250DS) / Dirt Devil (SZ250DL), SunL SL250-2 / XF250-2A / XF250-2AR / SLGK-250-2A, Jonway Master 250cc, Diamo Wolverine XF250-2A-2AR, Quadzilla XRV250, QLink Legacy 250 / Sapero 250 / Commuter 250, Kinroad 250cc XT250GK-2 / XT250GK-7, NST, BMS, Blades XTX 250, and Gio Bikes 250GT as well as many other brands of ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimensions of the Head Gasket:

• Bore Size: 73mm (2.87”)
• Bottom Mount Hole (centre to centre): 70mm (2.76”)
• Top Mount Hole (centre to centre): 70mm (2.76”)
• Side Mount Hole Left (centre to centre): 70mm (2.76”)
• Side Mount Hole Right(centre to centre): 70mm (2.76”)

Includes Part Numbers:

• 0110-023002-0B00 (172MM-023002)
• 0110-022010 (172MM-022010)

Manufacturer Part Numbers:

CF Moto Part Numbers:

• 172MM-023002, 0110-023002-0B00 “GASKET, CYLINDER” (black, no asbestos)
• 172MM-022010, 0110-022010 “GASKET, CYLINDER HEAD”

Hammerhead Part Numbers:

• 172mm-023002 “CYLINDER SEAL”
• 172mm-022010 “CYLINDER COVER SEAL”

BMS Part Number: BN172MM0000001

GOES Part Number: BN172MM0000001 “GASKET CYLINDER HEAD”

CHIRONEX Part Number: BN172MM0000001 “GASKET CYLINDER HEAD”

TNG Part Number: BN172MM0000001 “GASKET, CYLINDER HEAD”

Joyner 250cc Part Numbers:

• 172MM-023002 “GASKET, CYLINDER” or “SEAL WASHER.CYLINDER”
• SZ03005008 “GASKET, CYLINDER”
• 172MM-022010 “CYLINDER HEAD SEAL WASHER” or “GASKET, CYLINDER HEAD” or “SEAL WASNER.CYLINDER HEAD”
• SZ02011004 “GASKET, CYLINDER HEAD”

Baja Reaction 250 (2-seater model) Part Numbers:

• BR250-378 “GASKET, CYLINDER”
• BR250-343 “GASKET, CYLINDER HEAD”

Baja Dune 250 Part Numbers:

• DN250-493 “GASKET CYLINDER”
• DN250-465 “GASKET CYLINDER HEAD”

Kinroad 250cc models Part Numbers:

• 12291-SCC0-0000
• 12251-SCC0-0000 “GASKET CYLINDER HEAD”

SunL Part Numbers:

• XF172MM-1001010 “GASKET, CYLINDER HEAD COVER”,
• XF172MM-1002001 “GASKET, CYLINDER BODY”

Diamo Part Numbers:

• XF172MM-1001010 “GASKET, CYLINDER HEAD COVER”,
• XF172MM-1002001 “GASKET, CYLINDER BODY”

QLink Part Numbers:

• 172MM-023002 “GASKET, CYLINDER”
• 172MM-022010 “GASKET, CYLINDER HEAD”
