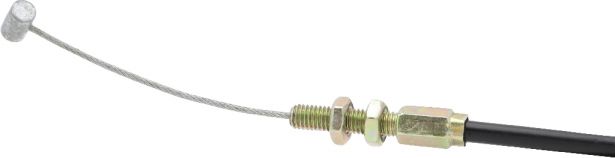

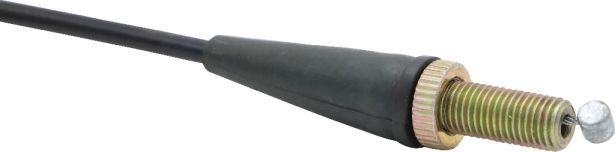

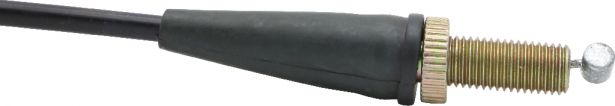

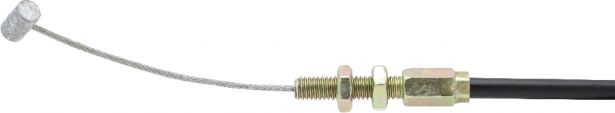

Throttle Cable - M10, M6, 110cm Total Length, 250cc Jianshe, Baja

Throttle cable. This is a very common profile and is used for (but not limited to) many big brand and lesser brand name machines from all over the world. Common format for many machines in the 250cc range. Most commonly used for (but not limited to) 250cc ATVs such as the Jianshe JS250 Mountain Lion and Baja Wilderness Trail 250 (WD250-U) ATV as well as many other clones, rebrands and similar displacement machines.

Common Jianshe model name is primarily listed as "Jianshe JS250ATV", "Jianshe 250cc ATV" and "Jianshe 250cc Mountain Lion". Common listed Jianshe JS250 throttle cable part number is SSA4-210000-0 and listed as "Thottle cable" in their parts lists. Also applies to some variations of Jianshe 250cc Go karts, buggies, UTVs and other products.

Manufacturer Part Number:

• SSA4-210000-0

Approximate Dimensions:

• Total Core Wire Length: 110cm
• Sheath Length: 102cm
• Thread Type: M10, M6
• Cable Travel Length: 7.3cm
• Cable Stops: 5.9mm, 3.1mm
