Clutch Carrier Pawl - CF Moto, 2V91W, 800CC, ATV, UTV

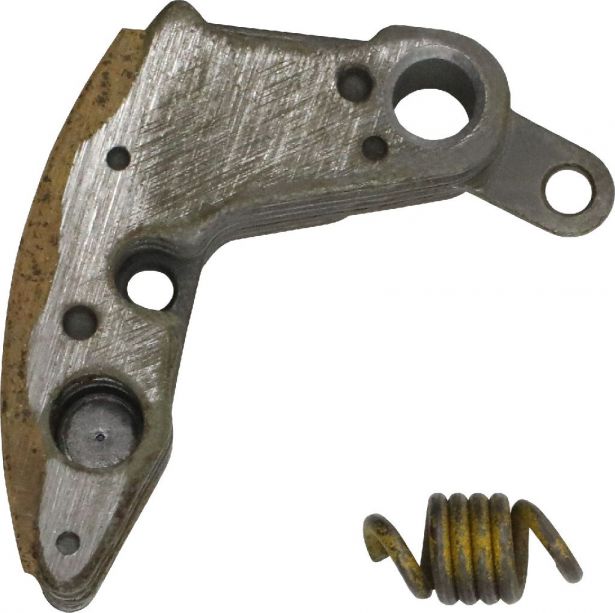

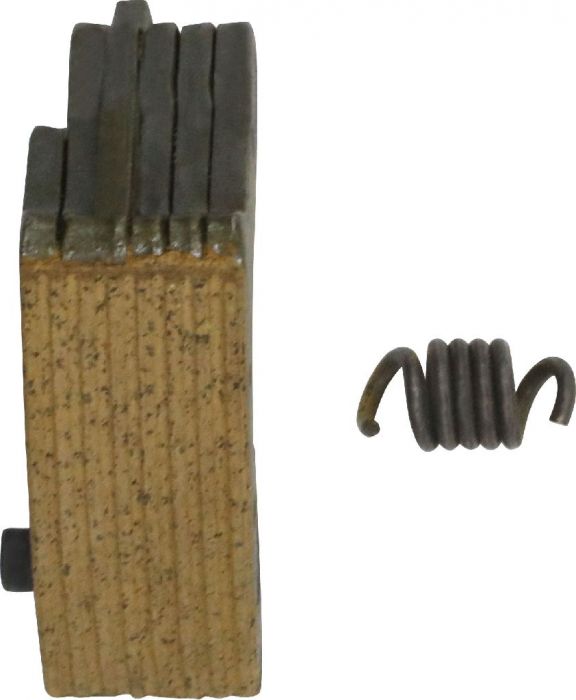

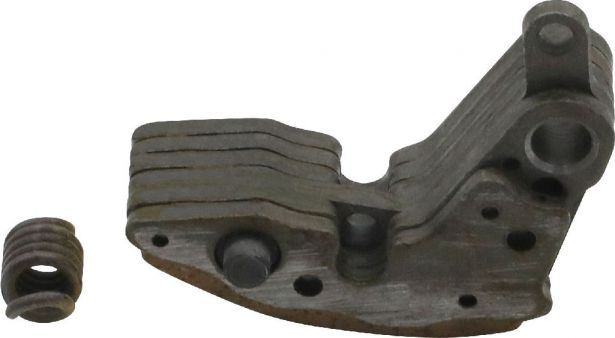

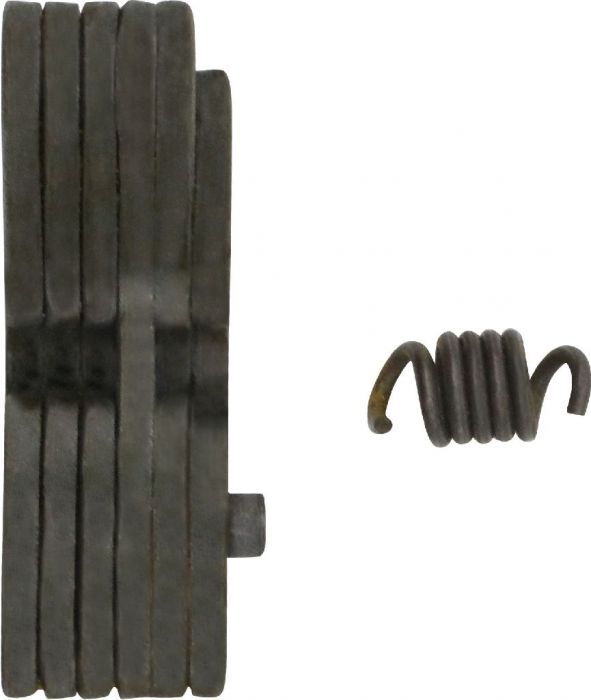

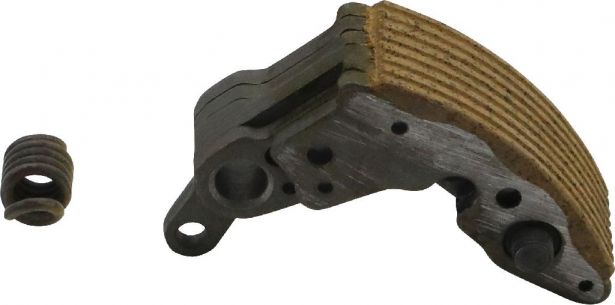

This CF800 clutch carrier pawl (6-layer) with 5 spring clutches is typically found in the Clutch Assembly section of several part manuals. Commonly used for but not limited to 2V91W / 800cc engines. It is most popularly known for its use in CF Moto 2V91W(X8) / 2V91W(Z8) / CF800-2 / CF800-3 UForce U8 / CF800ATR CForce 800 X8 / CF800ATR-2 2V91W CForce 800 X8 / CF800AU-2B CForce 800 X8 / CF800UTR ZForce Z8-EX / CF800UTR-2 UForce U8 / CF800UU-A UForce U8 / CF800 X8 / Uforce 800 U8 / ZForce 800 Z8 / X8 / Z8-EX / CForce 820 LE / CForce 820 LE T3 / ZForce 800 T1 / Tracker 800 / CF800UU-A UForce 800 EPS & U8EX / CForce 800 EPS / UForce 800 EX DLX EPS EU167, ZForce 800 EU167, Journeyman Gladiator Z8 / Gladiator X8 V-Twin EFI / UTV 830 EFI, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimension:

• Pawl Thickness (6 Layer): 24.5mm (0.96”)

Manufacturer Part Numbers:

CF Moto Part Numbers:

• 0800-054200, 0180-054200-0003 "PAWL" or “PAWL ASSY”
• 0180-054001-0003 / 0180-054001 “RETURN SPRING, CLUTCH”

Quadzilla Part Numbers:

• 0800-054200 “WEIGHT SLIDER ASSY” or “WEIGHT ROLLER”
• 0180-054001 “RETURN SPRING, WEIGHT SLIDER” or “RETURN SPRING, CLUTCH”

Journeyman Part Numbers:

• 0800-054200 "PAWL"
• 0180-054001 / 0180-054001-0003 “RETURN SPRING, CLUTCH”
