Description

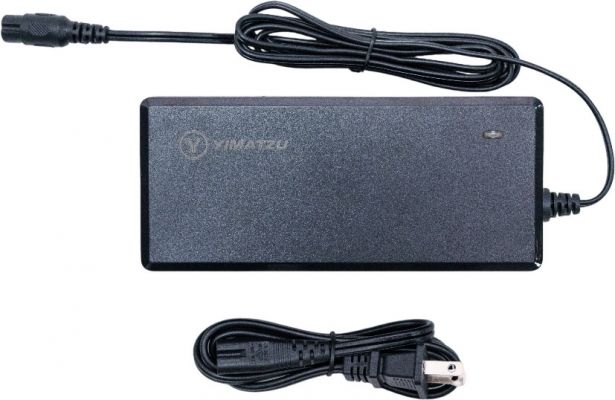

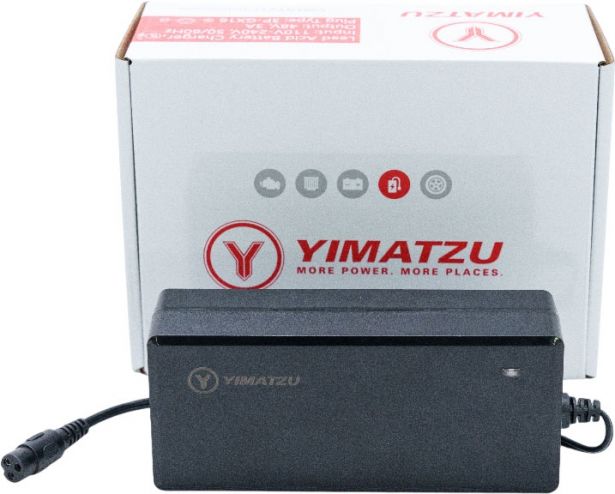

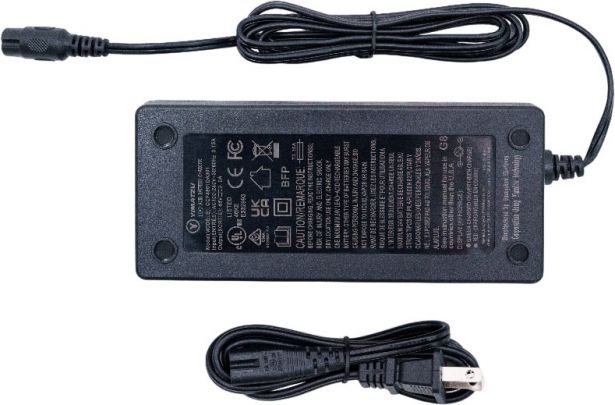

- Yimatzu brand charger - 48V, 3.0A (3000mA) standard polarity, lead acid battery applications. The charger plug is a three port inline female DIN connector, sometimes referred to as a GX16 plug or a GX16-3P plug. Colloquially referred to as a "Razor" plug. Pin 1 positive, pin 2 is ground and pin 3 is negative.
Be sure to use this charger only in the designated applications with corresponding power ratings and polarities. We do not warrant this product against misuse, all chargers are tested before leaving our facility.
- Voltage: 48V
- Amperage: 3A (3000mA)
- Polarity: Standard
- Connector: 3 Pin DIN - Female
- Dimensions: female 3 pin plug housing approximately 12.7mm/0.5in diameter
