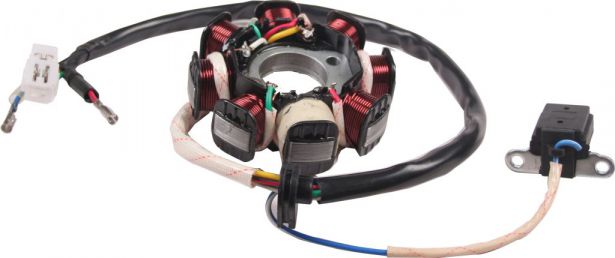

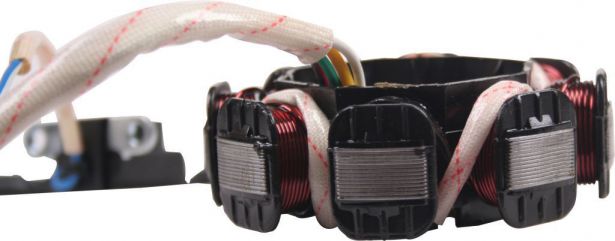

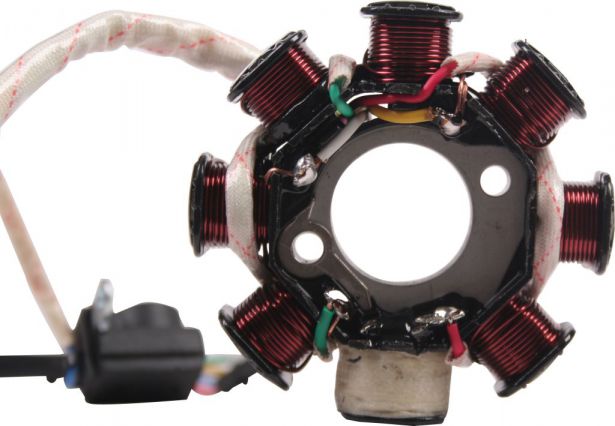

Stator - Magneto Coil, 50cc, GY6, 8 Coil, 5 Wire
Description
Magneto Coil (Stator) for 50cc GY6 style 4-stroke engines. 8 Pole, 4 wire for standard DC fired ignition systems.
Approximate Dimensions:
- Outside Diameter: 88.1mm
- Centre Hole Diameter: 29.2mm
- Mounting Hole (centre-centre): 40.7mm
- Bolt Hole: 6.1mm
- Harness Length: 54cm
- Pickup Wire Length: 12cm
- Pickup Hole (centre-centre): 35mm
