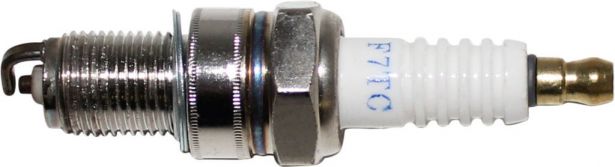

Spark Plug - F7TC

Spark Plug - F7TC
  • Spark Plug - F7TC
  • Spark Plug - F7TC
  • Spark Plug - F7TC
Product Number:
SPF7TC
Availability:
Out of Stock
Price:
$5.99 CAD


This spark plug F7TC is typically found in the Cylinder Head / Cylinder Barrel section of several part manuals. Commonly used for but not limited to 168F / 168FA / 168FB / 17F / 173F / 177F / 182F / 188F / 19F (5.5HP – 16HP), Predator 212cc / 346 / 420cc, Greyhound 5.5 – 13HP (with 2200-7000watt Chicago generators), and Honda GX120 / GX160 / GX200 / GX240 / GX270 / GX340 / GX390 engines. It is most popularly known for its use in Honda GX120 / GX160 / GX200 / GX240 / GX270 / GX340 / GX340, Coleman BT200 / CT200U Trail 200 / CT200U-EX / KT196, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. This spark plug is compatible with petrol engines of riding mowers, trimmers, tiller (ex. Southland S-RTT-196 (E) , lawn mowers (ex. Southland SM2110), chainsaws, and stable / steady automotive. The F7TC spark plug also fits on clone engines such as Pacific Hydrostar 4HP & 6.5HP pressure washer / water pump.

Approximate Dimensions and Specifications:

  • Thread Diameter: 14mm (0.55”)
  • Thread Reach: 19mm (0.75”)
  • Thread: M14
  • Electrode Gap / Spacing: ~0.7mm (0.028”)
  • Hex Size: 21mm (0.83”)
  • Stock Heat Range: 5
  • Terminal: Solid-type, Non-Removable
  • Spanner Size: SW20
  • 34200/168F
  • Seat Type: Gasket Seat
  • Electrode Material: Copper Core
  • Projection Type: Projected

Alternative Spark Plugs:

  • AC Delco: 41XLS, 41-2XLS, 42XLS, R41XLS
  • Autolite: 12, 40TS, 4252, 52, 62, 63, 4252, 53, AG22, AR52, XS62
  • Beru: 14-4DPO, 14-5D, 14-5D1, 14-5DP1, 14-5DU, 14-5DUO, 225/14/3A, 230/14/3A, 235/14/3P, D230/14/3A, Z103, Z42 , Z43
  • Bosch: 0 241 245 552, 0 241 245 599, 241245552, 241245599, 242240521, 242240592, F000KE0P13, W230T30, W250P21, W255T30, W4DP, W5CC, W5D,
  • Brisk: L14YC, N14YC, 1353, 1361
  • Champion: 332, 8332. N279YC, N65Y, N7Y, N7YC, N7YCC, N7YCX, N9YC, OE010/R04, OE010/T10, OE018, RN7YC
  • Citroen: MKP00073, ZCT000012
  • Denso: IW22, VW22, W22EP-U, W22EPR-U
  • Enker: FE85CP
  • Eyquem: 911007135, 911007157, 800LS, 850LS, C72LS, C82LS
  • Fiat: 7FYS
  • General Motors: 5613331, 5614070
  • Hitachi: L44PW
  • Honda: 9807957811, 98079-57811-01, 98079-57841
  • Motorcraft: AG12, AG12C, AG12CU, AG22, AGS12C, AGS12CF6, stk 64
  • NGK: BP7ES, 7734 / 7832, BP5ES
  • Renault: 77 00 737 459, 77 00 861 471, 77 01 366 087, 77 01 366 268, 7700737459, 7700861471, 7701366087, 7701366268
  • Subaru: 22401 AA090, 22401-AA090, 22401AA090
  • Suzuki: 09482-00139, 09482-00226, 09482-00385, 09482-00434
  • Torch: F7RTC
  • Toro: 119-1901, 81-3250
  • Yamaha: 94700-00117, 94701 00117, 94701-00117, 9470100117, 94703-00117
